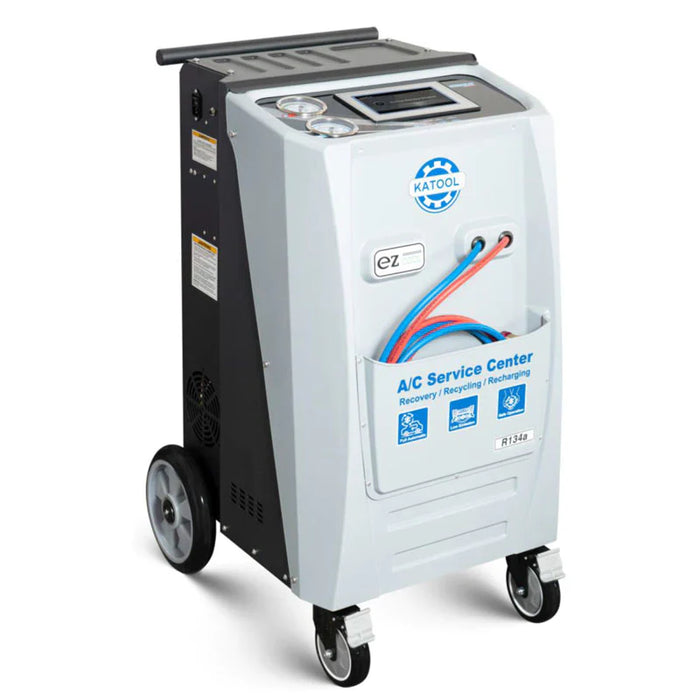

The Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine is your go-to solution for efficient refrigerant handling. With a remarkable minimum 95% recovery rate achieved in under 30 minutes, this high-performance machine ensures minimal downtime. Its versatility shines through as it caters to a diverse range of vehicles, including domestic, foreign, Electric, and Hybrid models, offering comprehensive support for various automotive HVAC systems. Experience precision and accuracy with an impressive ±0.5 oz (15 g) charge performance, backed by advanced load cell technology for precise gas and oil measurements. The user-friendly 7” touch HQ display makes operations seamless, while additional features such as a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system enhance the overall service experience.
Features
-
Quick Refrigerant Handling: This high-performance machine guarantees minimal downtime, achieving a remarkable 95% recovery rate in under 30 minutes.
-
Versatile Compatibility: Service a broad range of vehicles, including electric and hybrid models, offering comprehensive support for various automotive HVAC systems.
-
Precision and Ease: Experience precise charging with an accuracy of ±0.5 oz (15 g), thanks to advanced loadcell technology for gas and oil measurements.
-

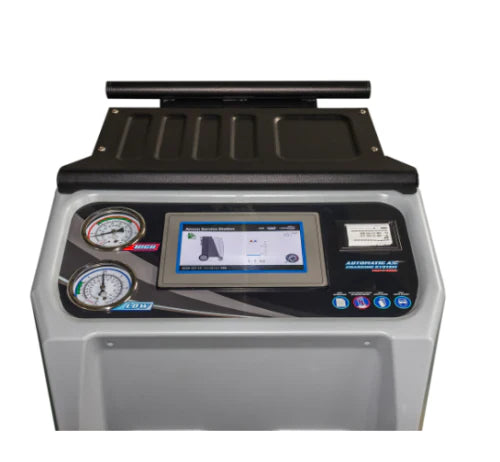

User-Friendly Touchscreen: Navigate operations effortlessly with a 7” touch HQ display, ensuring an intuitive and user-friendly process.
- Comprehensive Features: Enjoy additional functionalities such as a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system, ensuring a thorough and efficient service experience.
Specifications
|
Applicable Refrigerant Type
|
R134a
|
|
Voltage
|
110V AC, 60 Hz
|
|
Recovery Performance(70-75°F)
|
Min.95% in less than 30min
|
|
Charge Performance(70-75°F)
|
±0.5 oz (15 g)
|
|
Operate Temperature Range
|
41-122°F (5-50°C)
|
|
Max Pressure
|
18 bar
|
|
Filter-Drier Capacity
|
175 lbs (80kg),spin-on type
|
|
Gas Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Oil Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Vacuum Transducer Accuracy
|
1 mBar/1000mBar
|
|
Recovering Speed
|
39.7 lbs/h (18kg/h)
|
|
Charge Speed
|
2.2 lbs/min(1kg/min)
|
|
Hose Length
|
9.8’(3m)SAE J2788
|
|
Compressor
|
1/3hp(246W).themal protected,oiled,hermetically sealed
|
|
Vacuum Pump
|
3.6 CFM(120L/min),dual stage
|
|
Display
|
7”touch HQ
|
|
Tank
|
0.5 cubic feet(14.3L)
|
|
Oil Bottle
|
15 cubic inch(250mL)
|
Additional Information
|
Printer
|
YES
|
|
Heating Belt
|
optional
|
|
SD Database
|
YES
|
|
Vacuum Test
|
YES
|
|
Fan&Condenser
|
YES
|
|
Packing Size
|
22”x 28”x41”(550x700x1050mm)
|
|
Gross Weight
|
240lb(110kg)
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
