TSI Back Buddy 350B

TSI 350B BACK BUDDY II

Model Number: 350B

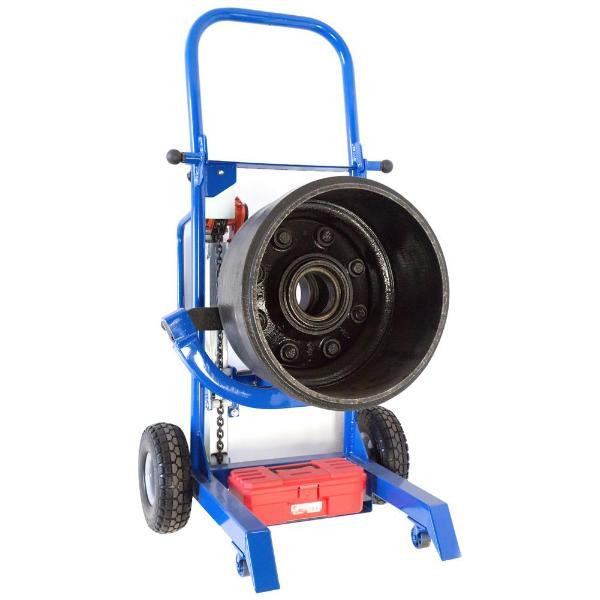

The 350B Back Buddy II™ will make brake jobs easier and more profitable. This versatile tool was designed to prevent injuries from awkward lifting and keep workers’ comp rates down. The Back Buddy II™ rolls under and bolts onto heavy drum and hub assembly, then handily rolls the assembly out and lays it over for servicing. Re-assembly is quick and precise because the Back Buddy II™ angles for perfect hub alignment, eliminating seal damage and costly fixes. The Back Buddy II™ handles all hub and drum assemblies with Universal Receiver and Adapter Sets. A simple change of adapters transforms the tool in seconds from inboard to outboard application.

*Adapters 6069 and 6073 10-hole inboard and outboard application are included

OPTIONAL ADAPTERS (SOLD SEPARATELY):

• 6069 - MKA2/2HD | 10 stud inboard hubs. Studs 335 mm on center
• 6073 - MKA3/3HD | 10 stud outboard hubs. Studs 11.25" on center, 3/4" hub back plate thickness
• 6071 - MKA4 | 5 and 6 spoke hub and drum
• 6074 - MKA5 | 8 stud inboard hubs. Studs are 275 mm on center
• 6075 - MKA6 | 8 stud outboard drum. Studs are 275 mm on center with 1/2" hub back plate thickness
• 6076 - MKA7 | 6 stud inboard hubs. Studs are 8 3/4" on center
• 6077 - MKA8 | 6 hole outboard drum. Studs are 8 3/4" on center with 1/2" hub back plate thickness.
• 6067 - MKHMV | 8 stud inboard hubs. Studs are 6 1/2" on center for Hummer/Humvee geared hubs

Specifications:

• WEIGHT 135 lbs
• DIMENSIONS 40 x 36 x 40 in
